Understanding Modern TV Technologies

If you have shopped for a new television recently, you have probably seen terms like OLED, QLED, Mini-LED, and LED/LCD. Manufacturers often market these technologies aggressively, but the differences between them are not always clear.

As a professional TV repair technician serving the Tampa Bay area, we see these technologies every day and understand how they work internally. Each display technology has its own advantages, disadvantages, and common failure points.

This guide explains the most common TV display technologies currently available.

Traditional LED / LCD TVs

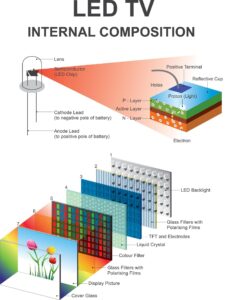

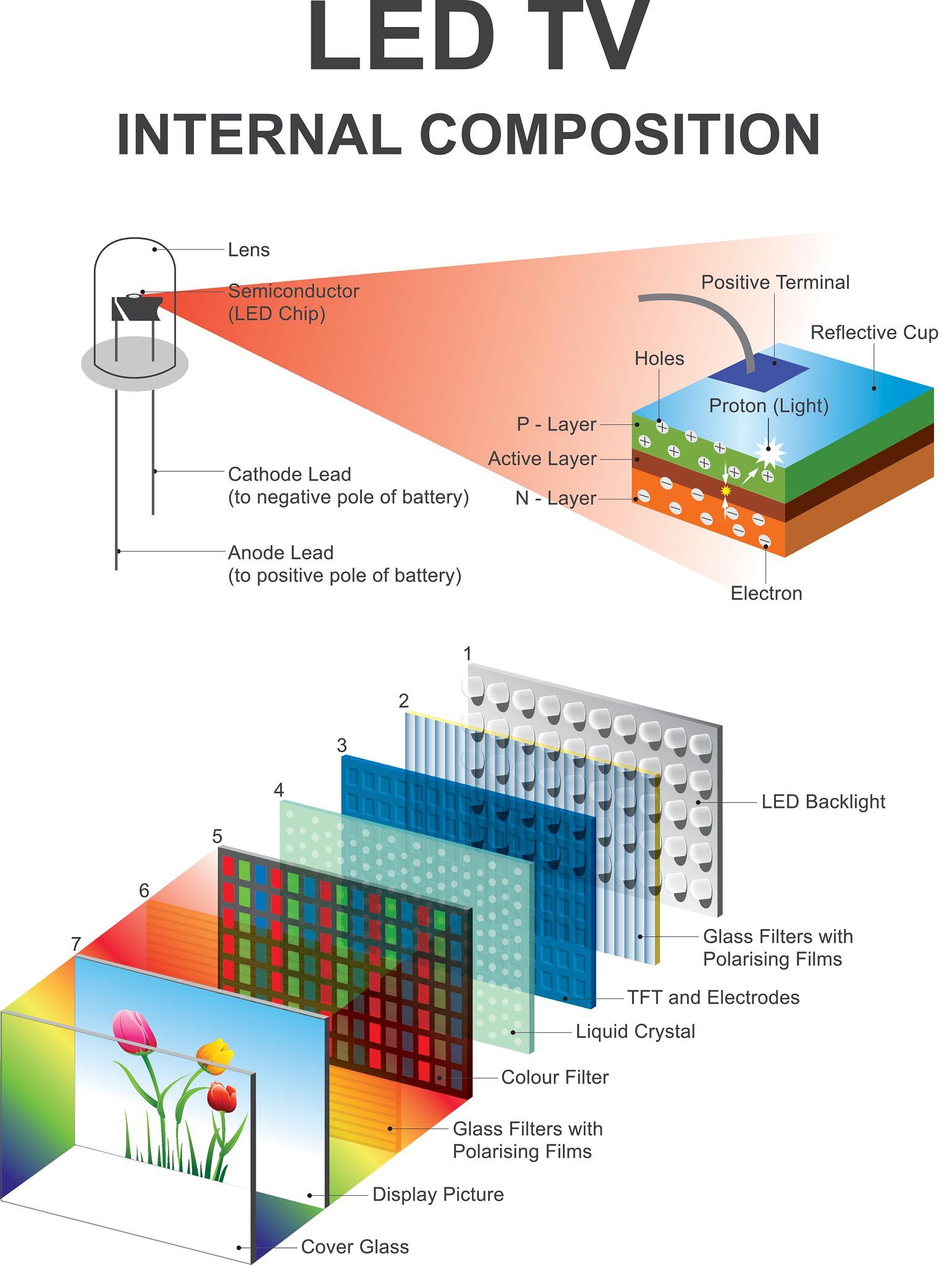

Most televisions sold today are technically LCD TVs with LED backlighting.

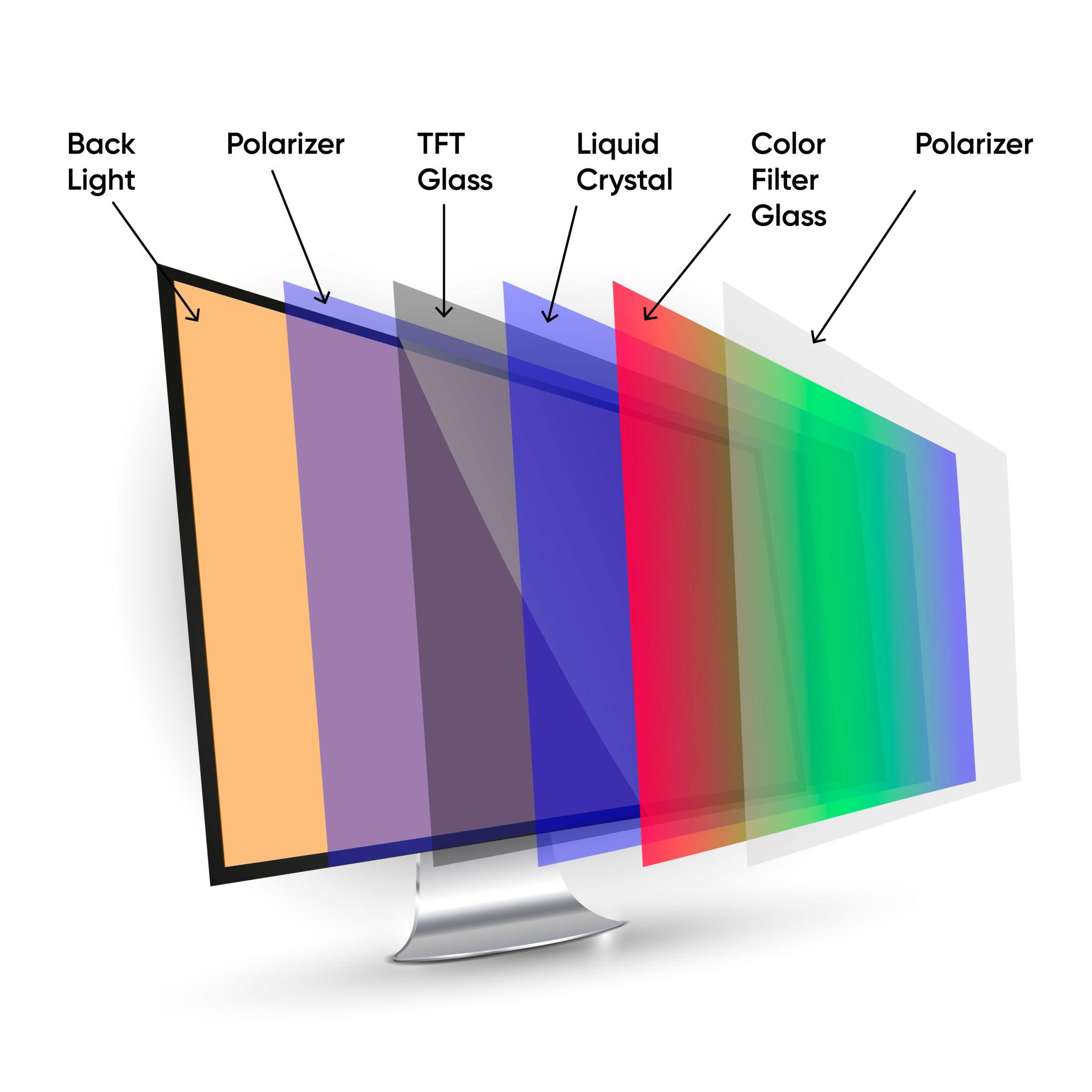

These displays work by shining a bright LED backlight behind a liquid crystal display (LCD) panel. The LCD layer acts like a shutter, controlling how much light passes through each pixel.

Advantages

• Generally the most affordable televisions
• Bright screens suitable for bright rooms
• Reliable and widely available
• Large variety of screen sizes

Disadvantages

• Blacks are not perfectly black because the backlight is always on
• Lower contrast compared to OLED
• Light bleeding can occur in darker scenes

Common LED/LCD Issues:

• Failed LED backlight strips
• Power supply failures
• T-Con board problems
• Vertical lines caused by panel issues

Mini-LED TVs

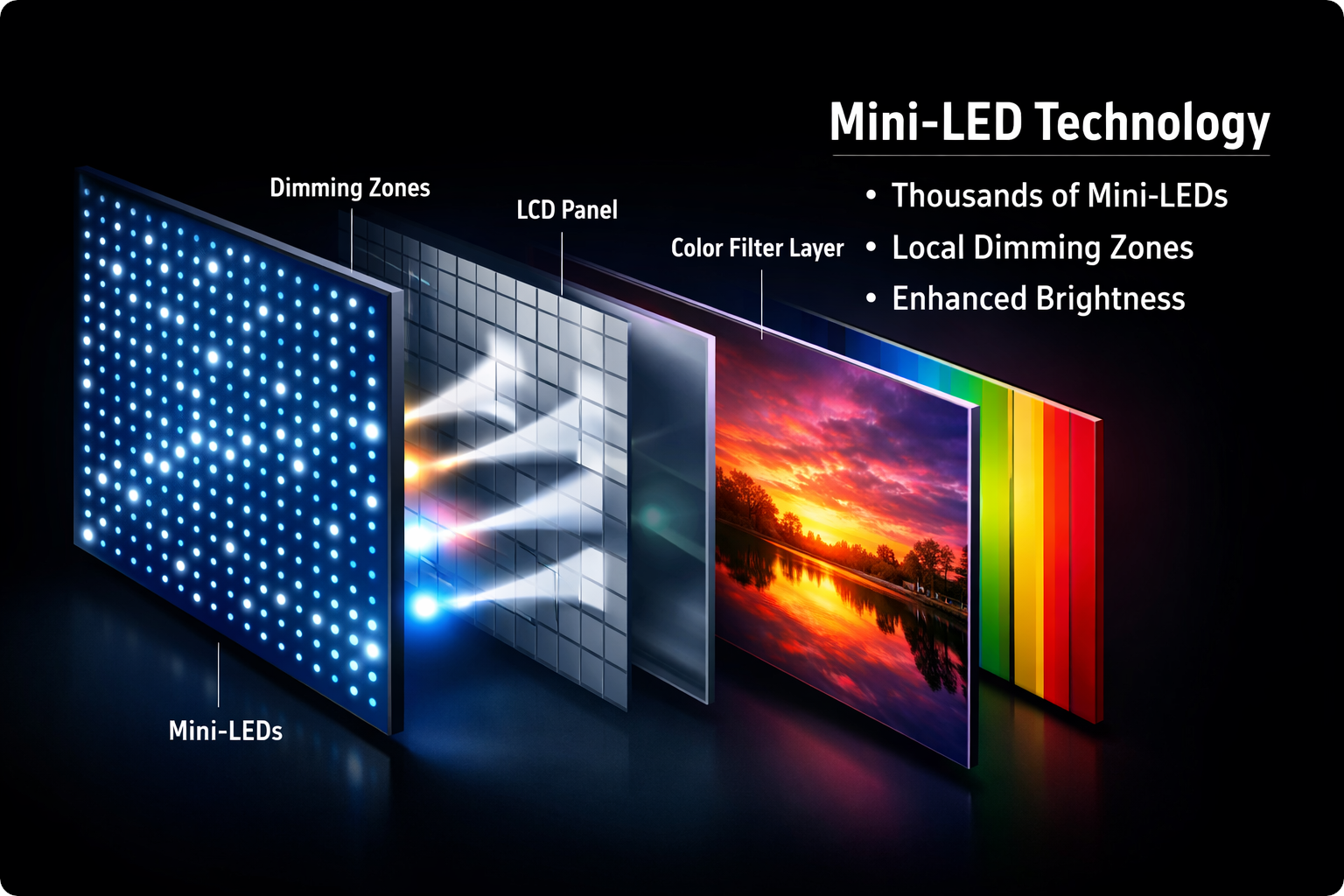

Mini-LED is an advanced version of LED/LCD technology.

Instead of using a small number of large LEDs behind the screen, Mini-LED TVs use thousands of extremely small LEDs. These LEDs are divided into many dimming zones, allowing parts of the screen to dim independently.

Advantages

• Much better contrast than traditional LED TVs
• Very high brightness levels
• Excellent for HDR content
• Reduced blooming compared to older LED TVs

Disadvantages

• Still relies on a backlight (not self-emissive like OLED)
• More expensive than traditional LED TVs
• Some halo/blooming may still occur

Common Mini-LED Issues:

• Backlight zone failures
• Power supply issues
• Control board problems

Mini-LED TVs are currently some of the best-performing LCD televisions available.

QLED TVs

QLED is a marketing term popularized by Samsung and other manufacturers.

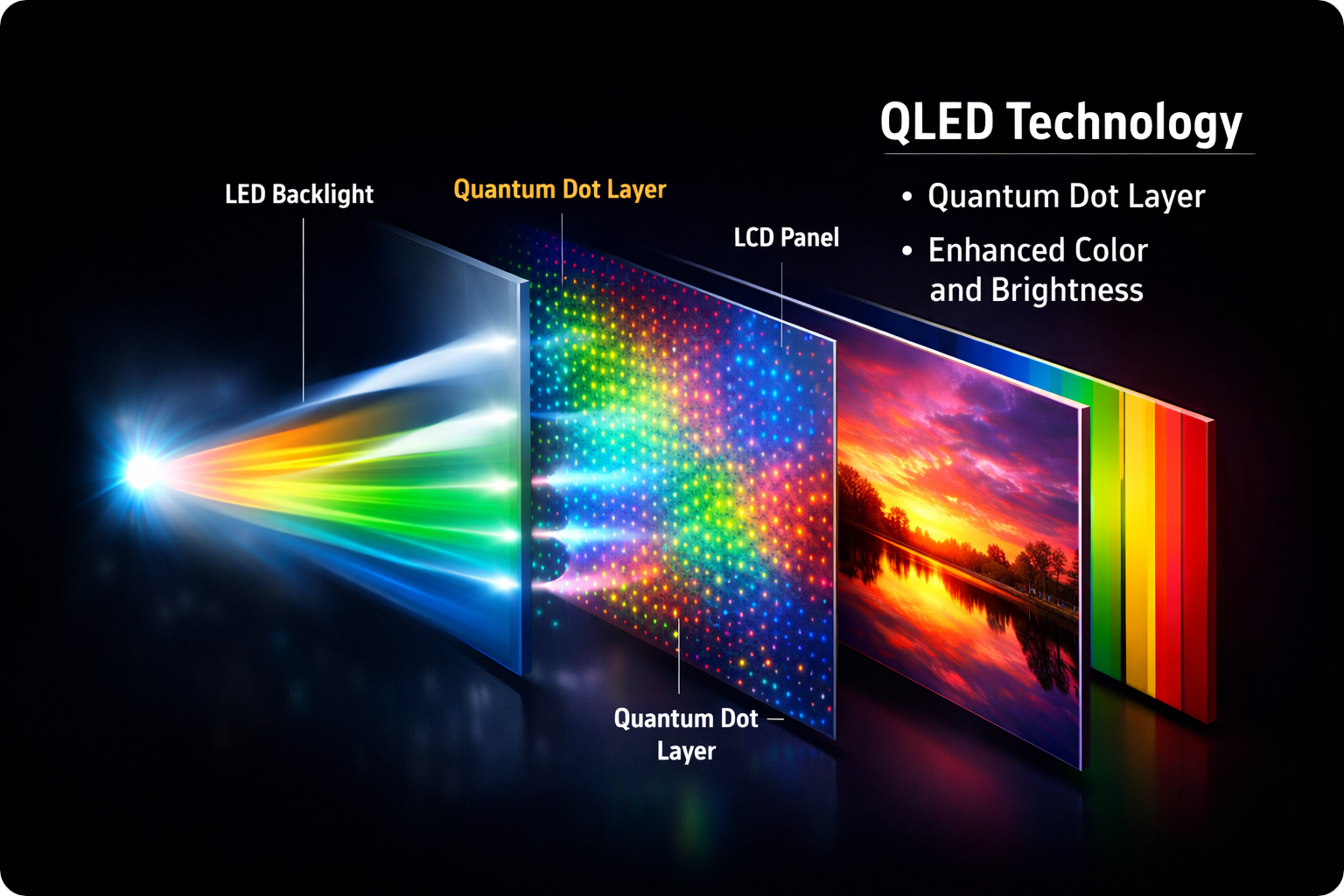

A QLED TV is actually an LED/LCD television that uses a quantum dot layer to improve color and brightness.

Quantum dots are tiny particles that enhance the color spectrum when illuminated by the LED backlight.

Advantages

• Extremely bright displays
• Excellent color accuracy
• Great for well-lit rooms
• Typically more affordable than OLED

Disadvantages

• Blacks are not as deep as OLED
• Still dependent on backlight technology
• Picture quality depends heavily on dimming zones

It is important to understand that QLED is still fundamentally an LCD television.

Common QLED Issues:

• Backlight Failure
• Power board issues
• HDMI port damage
• Software or mainboard problems

OLED TVs

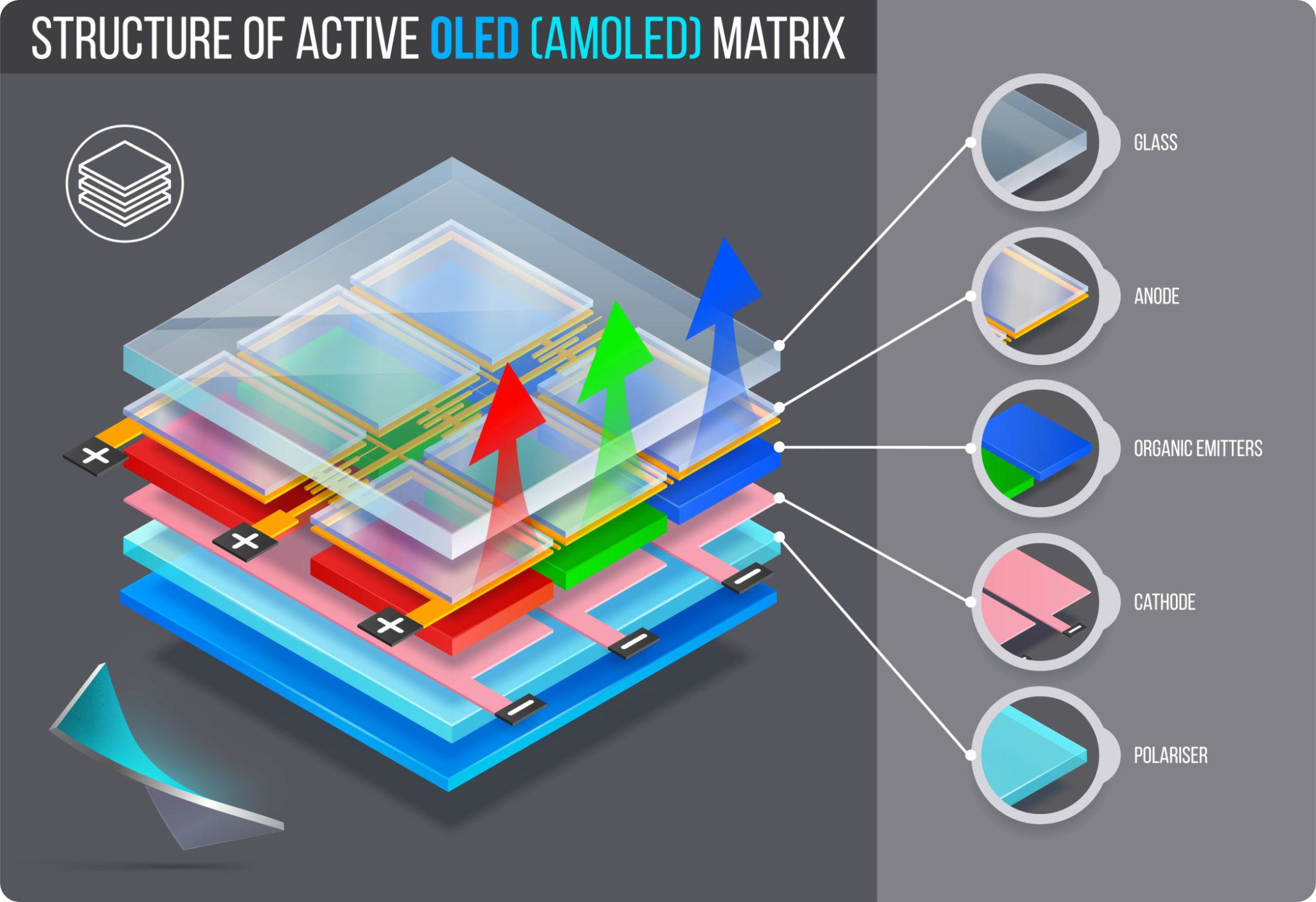

OLED stands for Organic Light Emitting Diode.

Unlike LED/LCD televisions, OLED pixels produce their own light. This means each individual pixel can turn completely off.

Advantages

• Perfect black levels
• Infinite contrast ratio
• Extremely thin panels
• Excellent viewing angles
• No backlight required

Disadvantages

• More expensive than LCD TVs
• Slightly lower brightness than high-end Mini-LED TVs
• Possible burn-in if static images are displayed for long periods

Because each pixel emits its own light, OLED TVs produce some of the best picture quality available today.

Common OLED Issues:

• OLED panel failure
• Image retention or burn-in (rare with normal use and current technology). We have an article explaining it here.
• Power supply issues
• Main board failures

OLED Panels are more expensive to replace then LCD panels, but overall failure rates are still relatively low.

Which TV Technology is Best?

The answer depends on how the TV will be used.

Best overall picture quality: OLED
Best brightness for bright rooms: Mini-LED or QLED
Best budget option: Traditional LED/LCD

Each technology continues to improve every year, and manufacturers often combine features to enhance performance.

Need Help Repairing Your TV?

If your television is experiencing problems such as:

• No picture
• Vertical lines on the screen
• Dark or bright spots
• Backlight failure
• Power issues

Our factory-trained technicians provide in-home TV repair throughout the Tampa Bay area.

We diagnose and repair OLED, QLED, Mini-LED, and LED/LCD televisions from most major manufacturers.
